Regulator Box

Prerequisites

Procedure

  1. Remove following magnet covers.
  2. Disconnect all connectors from Regulator Box.

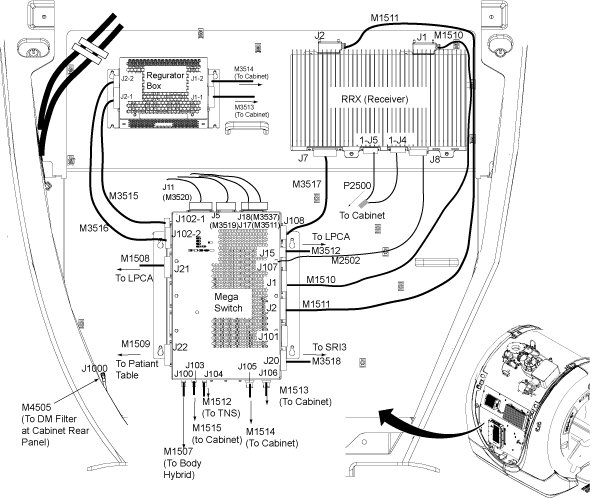

    Figure 1. Regulator Box Cable Removal

    • caution
    • Regulator Box contains ferrous materials.
    • Do not bring it very close to magnet bore during replacement.
    • If it is very close to the magnet bore, it will be attracted to the bore with great force.
  3. Loosen 4 screws and remove Regulator Box.

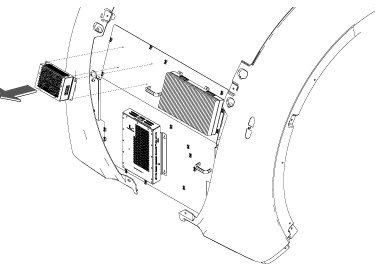

    Figure 2. Regulator Box Removal

  4. Restore it by the reverse order of the removal.
