Right and Left Side Cover

Prerequisites

Overview

Procedure

  1. Unlock the lock screw with non-ferrous wrench to counterclockwise.
    note:

    The illustration is right side cover. The left side cover is similar to right side cover.

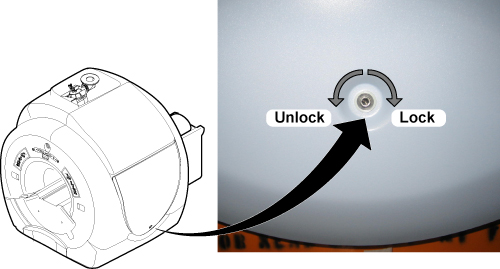

    Figure 1. Lock Screw

  2. Remove the right side cover.
    note:

    Grab sides of lower cover and lift upwards until the cover is released from the upper cover.

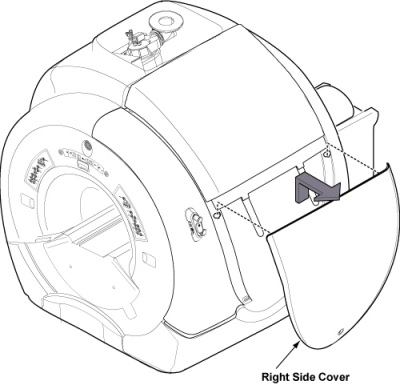

    Figure 2. Side Cover Removal

  3. Installation is reverse order of removal.

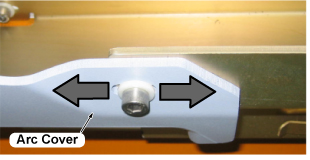

  4. Check the cover clearance. If needed, adjust the clearance of side cover and arc covers with fixing bolts of arc covers.

    Figure 3.

Finalization

No finalization steps.
