Left Top Cover

Prerequisites

Overview

Procedure

  1. Remove the left side cover. Refer to Right and Left Side Cover.
  2. Grab the two handles of the left top cover firmly and push the cover to upward and then pull out away from the enclosure.
    note:

    The left top cover is secured to the arc covers primarily by two round feet.

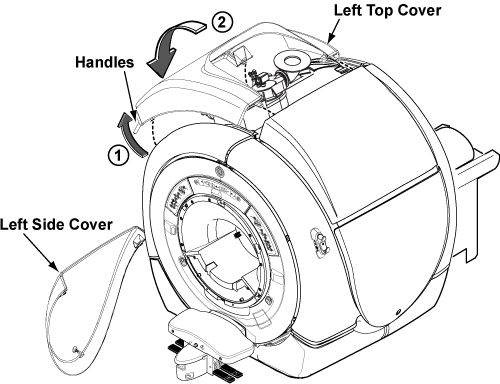

    Figure 1. Left Top Cover Removal 1

  3. Place the hooks of left top cover onto arc covers.
  4. Remove the left top cover by holding upper and lower sides of cover.

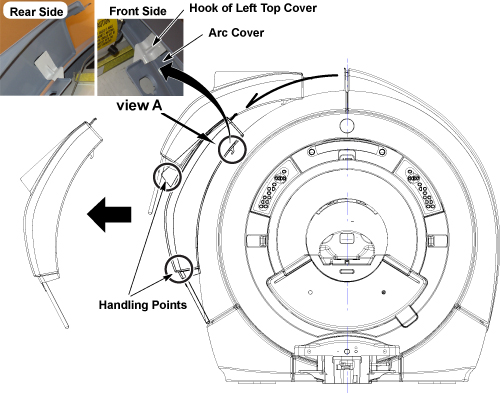

    Figure 2. Left Top Cover Removal 2

  5. Installation is reverse order of removal.

Finalization

No finalization steps.
