8ch RRx

Prerequisites

Procedure

  1. Remove following magnet covers.
  2. Disconnect all connectors from RRX.
    note:

    Handle the Fibre Optic cables with care, they are very fragile.

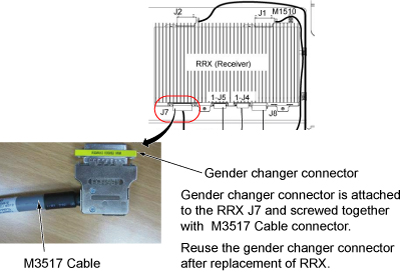

    Figure 1. RRX Cable Removal

    note:

    Please reuse Gender Changer connector at J7 for the new RRX.

    • caution
    • RRx contains ferrous materials.
    • Do not bring it very close to magnet bore during replacement.
    • If it is very close to the magnet bore, it will be attracted to the bore with great force.
  3. Loosen 4 screws and remove RRX.

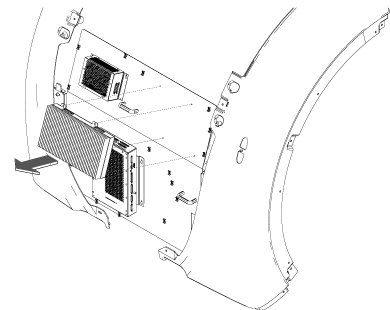

    Figure 2. RRX Removal

  4. Restore it by the reverse order of the removal.

1 Finalization

Procedure

  1. Restore the Power. Refer to System Cabinet PDU Main Breaker LOTO Procedure.
  2. Perform the following Diags and confirm that all of the tests are passed.
  3. Perform System Gain Calibration.
  4. Perform one Body or Head Scan.
  5. Perform SPT Coherent Noise Test .
    note:

    Perform SPT Coherent Noise Test Only by selecting 'No' for 'Select All Tests?' and 'ON' for 'Coherent Noise'. No need to perform SPT Full test.
