TABLE ACTUATOR CABLE
Prerequisites
Figure 1. DO NOT TAKE THE TABLE BEYOND THE MARKED LINE

Procedure
- System Power must be turned OFF. Refer to Lockout / Tagout for System Cabinet PDU Main Breaker...
- Disconnect the Table from MR Magnet; take it out from the Magnet
room. Refer to TAKE TABLE OUT FROM THE MAGNET ROOM
- Remove the scissor covers from the table. SCISSOR COVERS
- Remove the Cables connected to the Actuator.

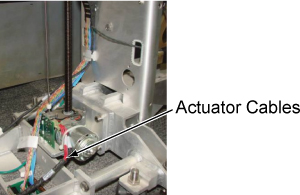

Figure 2. Remove the Cables

- Now the Control board cable assembly is free to remove from table.
- Now take the new Table Control Cable assembly
- Connect the cable one end of the cable to the actuator.
Figure 3. Connect the cable

- Fix the scissor covers to the table. Refer to SCISSOR COVERS.
- Move the Fixed Table and install to Dock Frame.
- Connect the Cables to the MR Gantry.
1 Finalization
Procedure
- Turn the System Power ON. Refer to Lockout / Tagout for System Cabinet PDU Main Breaker..
- Level the table and adjust the table height. Refer to Leveling Fixed Table and TOP HEIGHT ADJUSTMENT.
- Fix the FRP Covers of the Table.
- Check the Table Function. Refer to TABLE CHECKS AFTER INSTALLATION.
- Perform Express Coil MCQA Test to check that the PA coil cable is properly connected.
