Patient Communication Box

Prerequisites

Table 4. Safety

danger

STRONG MAGNETIC FIELD!
FERROUS MATERIALS CAN BECOME DANGEROUS PROJECTILES IN THE PRESENCE OF THE MAGNETIC FIELD PRODUCED BY THE SIGNA MAGNET.
Do not Bring any ferromagnetic tools or equipment into the magnet room.

Notice Image

warning

ELECTROCUTION HAZARD!
DANGEROUS VOLTAGES ARE PRESENT AROUND THE MAGNET SUBSYSTEM WHEN ENERGIZED.
LOCK AND TAG OUT POWER TO THE magnet room BEFORE STARTING WORK.

Table 5. Required conditions
Condition	Reference	Effectivity
System Power must be turned OFF. Refer to Lockout / Tagout for HDsv 1.5T System Cabinet PDU Main Breaker.	-	-

Procedure

Remove Rear Pedestal left cover.
Disconnect all connectors from patient communication box. (J6, J7, J8, and J9)
Remove 2 screws and remove patient communication box with bracket.

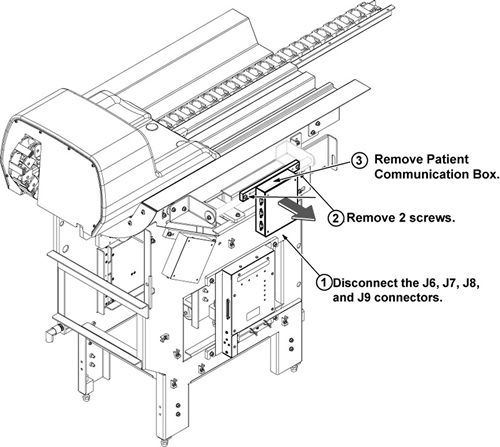

Figure 1. Patient Communication Box
Restore it by the reverse order of the removal.

1 Finalization

Procedure

Restore the Power. Refer to Lockout / Tagout for HDsv 1.5T System Cabinet PDU Main Breaker.
Check intercom function. Basically, intercom adjustment of GOC Audio Box is not required. If necessary, perform Intercom Adjustment for Simple OC Audio Box as troubleshooting.
