PS for Exciter

Prerequisites

Location of each Power Supply is as following illustration

Figure 1. Location of Power Supply

Procedure

  1. Remove Front Cover. Refer to SC Cover Removal
    note:

    PS connectors are designed to be uniquely connected to the other end to avoid the mis-connection except Receiver and Exciter cable connectors.

  2. Disconnect the connectors which are routed from PS for Exciter. If necessary, cut the tie wraps.
  3. Loosen 2 screws tightening power supply and chassis.
    • notice
    • PS Tray is tightly inserted in the bracket. Need enough pull force to remove it.
  4. Remove the Exciter power supply from System Cabinet.

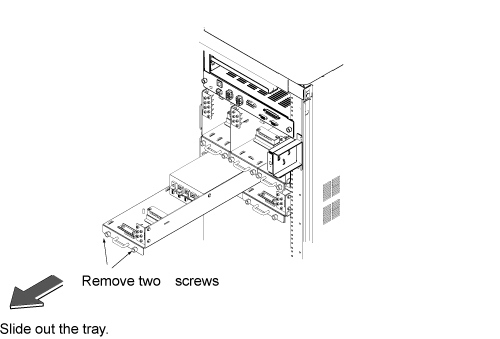

    Figure 2. PS for Exciter

  5. Restore new Exciter power supply by the reverse order of removal.
  6. Restore the system cabinet by the reverse order of the removal.
