ICN Replacements (From 4100 to 4170)

Prerequisites

Table 3. Safety

warning

ELECTROCUTION HAZARD!
DANGEROUS AND OR FATAL VOLTAGES ARE PRESENT IN THE ENERGIZED CABINET.
Follow loto steps as given in first section of this document to disable and verify safe voltage levels.

notice

Follow the procedure mentioned below for removing power to ICN chassis. Failure to properly power down ICN’s may result in premature ICN failure.

notice

Under NO circumstances should the ICN's be turned ON/OFF from the power button on the front. The ICN's have software running on disk drives that may become corrupted if not shut down properly.

Table 4. Required conditions
Condition	Reference	Effectivity
Software Version must be M4.	-	-
System Power must be turned OFF. Refer to System Cabinet PDU Main Breaker LOTO Procedure.	-	-

Procedure

Remove L Front Cover. Refer to SC Cover Removal.
Remove Rear Cover (Magnet Room Side). Refer to SC Cover Removal .
Remove Rear access cover.

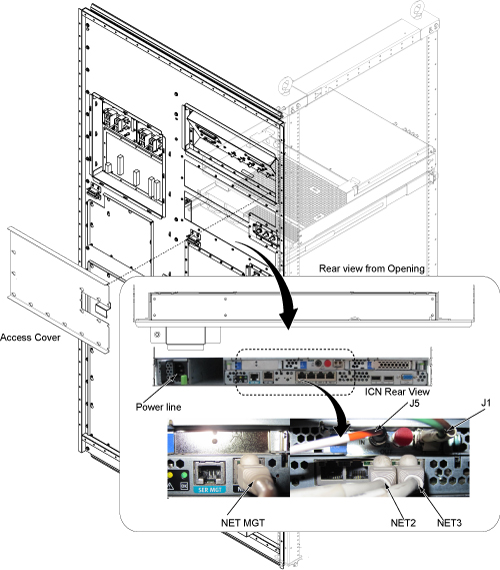

Disconnect all of cables from the rear of the ICN.

Figure 1. ICN Cable Removal
On the front of the ICN, remove the three screws and remove ICN Noise Duct.

Figure 2. Remove ICN Noise Duct
Loosen two screws and slide the ICN out.

Figure 3. Slide the ICN out
Pull up and remove ICN bracket.

Figure 4. Remove Bracket

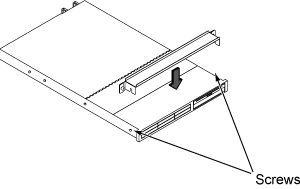

Reverse the direction of bracket and install the bracket on the ICN X4170.

Figure 5. Install ICN bracket for ICN X4170

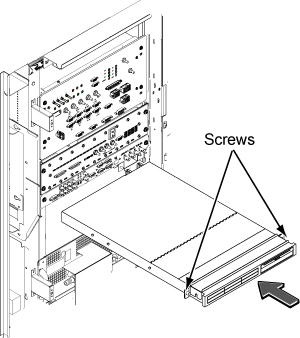

Insert new ICN into the Cabinet and install two screws.

Figure 6.
Connect all the cables back and restore covers.

Figure 7.

Finalization

Restore the Power. Refer to System Cabinet PDU Main Breaker LOTO Procedure.
Perform following procedure of VRE configuration. This procedure will take between 25-30 minutes to complete.
1. With the Signa up and running, go to the service desktop and push the [Guided Install] button on the toolbar. Then, Select "FE mode" and click [start]. A Cshell will open and ask for root password ("operator" < enter> is the default) The Install GUI will load and start.
2. Select "Configure VRE" and click on [Configure VRE Blades].
  Figure 8. VRE Configuration
3. When the Information window (shown in Figure 9) displays, click [Continue] to confirm that the VRE Gigabit Switch Ethernet and Host Ethernet connections (Figure 10) are complete and correct.
  Figure 9. Confirm VRE Installation

  Figure 10. VRE Gigabit Switch and Host Ethernet Connections
When VRE configuration is complete, a configuration Success message is displayed. Click [OK] to continue.
note:
ICN error log remains even though ICN is replaced.

ICN Monitor Display shows ICN sensor logs stored in '/usr/g/service/log/sensor_logs' directory.

('ICN Monitor Display' is shown from 'MR Service Desktop/Diagnostics/VRE Subsystems/ICN Monitor Display'.)

This log is not automatically removed after ICN is replaced.

As a result, you will see error log of previouse ICN even though it is replaced to the new ICN.

By performing the following procedure, the old log will be removed.
Remove log stored in '/usr/g/service/log/sensor_logs' directory as follows.
1. Open C Shell Window.
2. Enter 'cd /usr/g/service/log'.
  % cd /usr/g/service/log
3. Enter '\cp -R sensor_logs sensor_logs.old' to make backup of old log file.
  % \cp -R sensor_logs sensor_logs.old
4. 4 . Enter as follows.
  % su

  （enter password）
5. Enter 'cd /usr/g/service/log/sensor_logs'.
  % cd /usr/g/service/log/sensor_logs
6. Enter 'ls -l' and hit [Enter] to check the log files. (following is just example.)
  % ls -l

  -rw-r--r-- 1 root root 114122 Aug 26 13:48 ACPI

  -rw-r--r-- 1 root root 127392 Aug 26 13:48 DBP.HDD0.PRSNT

  -rw-r--r-- 1 root root 120757 Aug 26 13:48 DBP.PRSNT

  -rw-r--r-- 1 root root 147307 Aug 26 13:48 FB0.FM0.F0.TACH

  -rw-r--r-- 1 root root 120757 Aug 26 13:48 FB0.PRSNT

  -rw-r--r-- 1 root root 147307 Aug 26 13:48 FB1.FM0.F0.TACH

  -rw-r--r-- 1 root root 120757 Aug 26 13:48 FB1.PRSNT

  -rw-r--r-- 1 root root 115449 Aug 26 13:48 INTSW

  -rw-r--r-- 1 root root 0 Aug 26 13:48 LAST_PULL

  -rw-r--r-- 1 root root 118103 Aug 26 13:48 MB.R0.P

  -rw-r--r-- 1 root root 151278 Aug 26 13:48 MB.T_AMB

  -rw-r--r-- 1 root root 124738 Aug 26 13:48 P0.D0.PRSNT

  -rw-r--r-- 1 root root 120757 Aug 26 13:48 P0.PRSNT

  -rw-r--r-- 1 root root 124738 Aug 26 13:48 P1.D0.PRSNT

  -rw-r--r-- 1 root root 120757 Aug 26 13:48 P1.PRSNT

  -rw-r--r-- 1 root root 126065 Aug 26 13:48 PS0.CUR_FAULT

  -rw-r--r-- 1 root root 119430 Aug 26 13:48 PS1.CUR_FAULT

  -rw-r--r-- 1 root root 110141 Aug 26 13:48 PS1.F0.TACH

  -rw-r--r-- 1 root root 119430 Aug 26 13:48 PS1.FAN_FAULT

  -rw-r--r-- 1 root root 107487 Aug 26 13:48 PS1.I_IN

  -rw-r--r-- 1 root root 114122 Aug 26 13:48 PS1.PWROK

  -rw-r--r-- 1 root root 114122 Aug 26 13:48 PS1.T_AMB

  -rw-r--r-- 1 root root 132700 Aug 26 13:48 PS1.V_IN

  -rw-r--r-- 1 root root 114122 Aug 26 13:48 PS1.VINOK

  -rw-r--r-- 1 root root 115449 Aug 26 13:48 PWRBS

  -rw-r--r-- 1 root root 37070 Aug 24 11:01 SEL
7. Enter 'rm *' and hit [Enter] to remove all log files.
  % rm *
8. Enter as follows to exit from su.
  % exit
Log is collected every one hour. If you want to collect log right after replacement of ICN, enter the following command.
1. Enter as follows on C Shell Window.
  % su

  'enter password'
2. Enter 'cd /export/home/signa/vre/diags'.
  % cd /export/home/signa/vre/diags
3. Enter as follows to collect log. It will take several seconds to complete.
  % sensors.pl
4. Enter as follows to exit from su.
  % exit
5. Check log by ICN Monitor Display.
Run one head or body scan.
