Encoder Assy

Prerequisites

Table 4. Safety

danger

STRONG MAGNETIC FIELD!
FERROUS MATERIALS CAN BECOME DANGEROUS PROJECTILES IN THE PRESENCE OF THE MAGNETIC FIELD PRODUCED BY THE SIGNA MAGNET.
Do not Bring any ferromagnetic tools or equipment into the magnet room.

Notice Image

warning

ELECTROCUTION HAZARD!
DANGEROUS VOLTAGES ARE PRESENT AROUND THE MAGNET SUBSYSTEM WHEN ENERGIZED.
LOCK AND TAG OUT POWER TO THE magnet room BEFORE STARTING WORK.

Table 5. Required conditions
Condition	Reference	Effectivity
System Power must be turned OFF. Refer to Lockout / Tagout for System Cabinet PDU Main Breaker.	-	-

Procedure

Loosen setscrew on encoder shaft.
Remove a screw tightening encoder bracket.
Remove Encoder Assy.

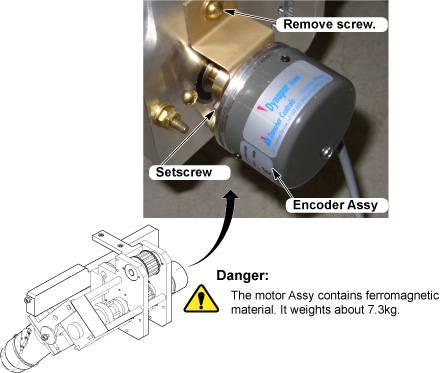

Figure 1. Remove Encoder Assy
Restore it by the reverse order of the removal.

1 Finalization

Procedure

Restore the Power. Refer to Lockout / Tagout for System Cabinet PDU Main Breaker.
Perform Longitudinal Drive Calibration .
Perform DQA Tool to adjust Isocenter Z.
Perform Signal to Noise - Head Scan.
