Convert Board 3

Prerequisites

Procedure

  1. System Power must be turned OFF. Refer to Lockout / Tagout for System Cabinet PDU Main Breaker...
    2. Notice Image
    • notice
    • Wear the static electricity prevention wrist band when accessing the cables below cradle not to damage the electronics module such as Mega SW.
  2. Remove FRP bottom covers of Fixed Table.
    1. Remove the Rubber cap and then screws of the FRP bottom cover on the near the Gantry end of the Table.

      Figure 2. FRP Cover1

    2. Similarly remove the cap and screws of the FRP bottom cover on the rear end of the Table.

      Figure 3. FRP Cover2

    3. Remove the right Bottom FRP Cover. Similarly remove the left Bottom FRP cover on the other side

      Figure 4. FRP Cover3

    4. Now remove the Dock FRP Cover Locking screws and then the Dock FRP cover carefully.

      Figure 5. FRP Cover4

    5. Keep both Bottom FRP Covers and Dock FRP covers aside safely.

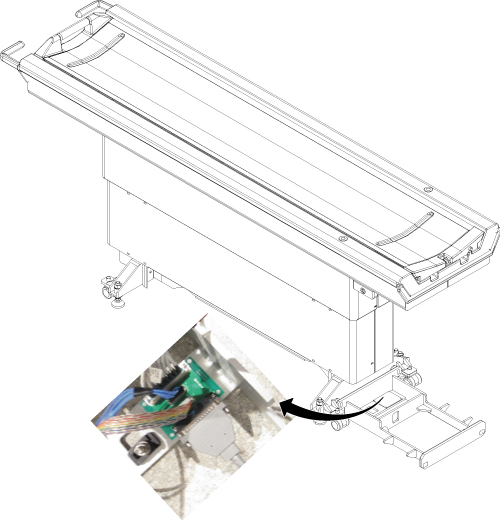

  3. Disconnect all cables from convert board3.

    Figure 6. Disconnect cables

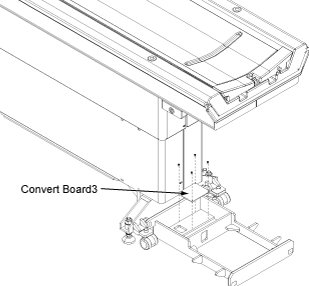

  4. Remove defective Convert Board 3 by removing four screws.

    Figure 7. Convert Board 3 Removal

  5. Install new Convert Board 3 by reverse order of removal.
