Front Trim Ring

Prerequisites

Table 2. Safety

danger

Strong Magnetic Field!
Ferrous materials can become dangerous projectiles in the presence of the magnetic field Produced by the Signa Magnet.
Do not Bring any ferromagnetic tools or equipment into the magnet room.

Overview

Procedure

Remove the front trim ring. The front trim ring is fixed by 7 poppers to enclosure.

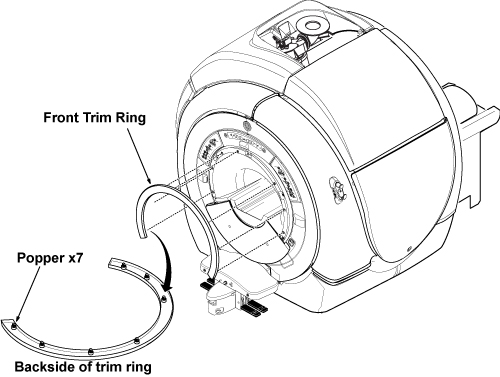

Figure 1. Front Trim Ring Removal
Installation is reverse order of removal.

Finalization

No finalization steps.
