1.5T Neurovascular Array Mirror Replacement

Prerequisites

Follow this process to replace the mirror assembly on the 1.5T Neurovascular (NV)Array by Medrad (M3087JJ).

Procedure

  1. Insert a #1 Philips screwdriver into the pin removal fixture supplied with the replacement mirror. See Figure 1.

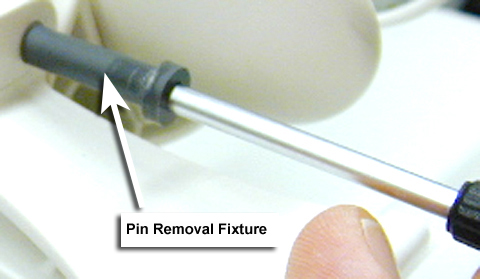

    Figure 1. Positioning the Pin Removal Fixture

  2. Place the pin removal fixture over the mirror pivot pin and begin to apply pressure. See Figure 2.

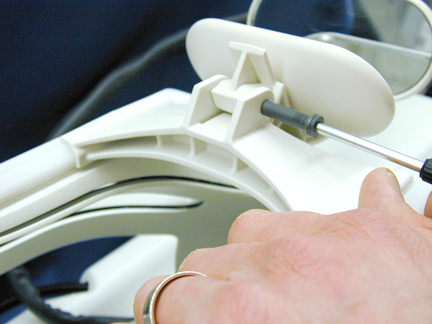

    Figure 2. Applying Pressure to the Pin Removal Fixture

  3. Apply pressure to the pin removal fixture until the fixture is fully engaged. See Figure 3.

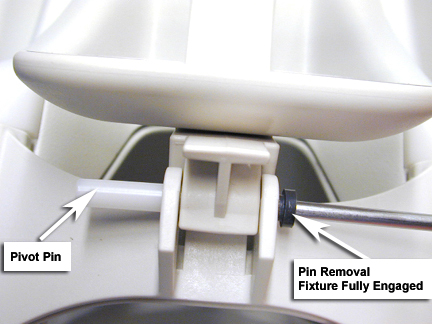

    Figure 3. Pin Removal Fixture Fully Engaged

  4. Remove and replace the mirror assembly. See Figure 4.

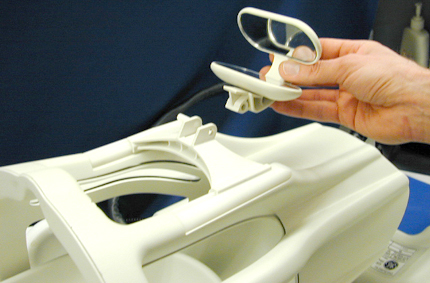

    Figure 4. Removal/Replacement of Mirror Assembly

  5. Press the mirror pivot pin back into place. See Figure 5.

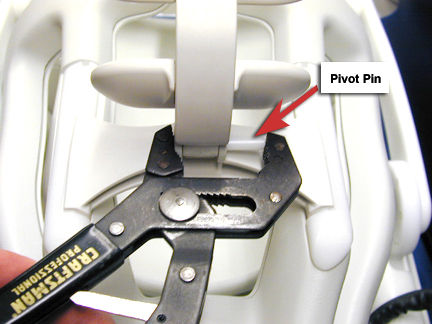

    Figure 5. Installing Mirror Pivot Pin

Finalization

No finalization steps.
