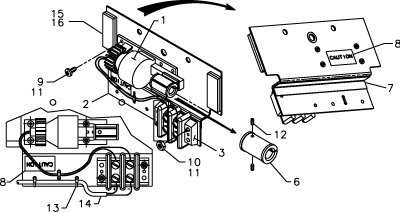

WIDE OPEN BORE LIGHT ASSEMBLY-FIXED 2222547

Table 1. WIDE OPEN BORE LIGHT ASSEMBLY-FIXED 2222547
Item	Part Number	Description	Qty	FRU	Lower Assy
1	2222548	WIDE OPEN BORE LIGHT SOURCE ASM	1	Yes
2	2222376	PLATE,MOUNTING,BORE LIGHT	1	Yes
3	46-313195P1	2 POSITION TERMINAL STRIP, DUAL ROW, 1,700V, 50A, PHENOLIC, 4 MTG HOLES	1	Yes
6	2222550	WIDE OPEN FIBER OPTIC CABLE HOLDER	1	Yes
7	46-170209P1	0.034 X 1.00 X 100 FT MINIMUM QUANTITY 300 ROLLS SEE TEXT FOR CORRECT ORDER QUANTITY.	0	Yes
8	46-287268P1	CAUTION, EXTREMELY HOT HALOGEN LAMPS	2	Yes
9	2109873-5	SCREW PAN HEAD 2.5 MM 8 MM	4	Yes
11	46-170686P2	LOCTITE 242, 10CC 12 MONTH SHELF LIFE FROM DATE OF SHIPMENT FROM THE MANUFACTURER	0	Yes
12	46-328424P1	SCREW SET SCREW 2.5 MM 4 MM WITH CUP POINT BLACK OXIDE, STEEL	2	Yes
13	46-208758P2	5.5~ X .140~ SELF-LOCKING CABLE TIE. 1/16~ TO 1-1/4~ WIRE BUNDLE RANGE. 30LB TENSILE STRENGTH, NYLON MATR~L.	3	Yes
14	2184145	(300) PP1-J15 TO MG2-A15 BORE LIGHT	1	Yes	(300) PP1-J15 TO MG2-A15 BORE LIGHT 2184145
16	46-136246P29	VELCRO HOOK FASTENER	2	Yes

1 (300) PP1-J15 TO MG2-A15 BORE LIGHT 2184145

Table 2. (300) PP1-J15 TO MG2-A15 BORE LIGHT 2184145
Item	Part Number	Description	Qty	FRU	Lower Assy
2	46-243508P1	25 COND 12PR#22-#22 CBL SHIELDED COLORS: BLK,RED;BLK,WHT;BLK,GRN;BLK, BLU;BLK,YEL; B,BRN;B,ORN;B,WHT;RED,G RN~RED,BLU;RED,YEL;RED,BRN	60	No
3	46-221846P13	025 CONT PLUG HDP-20 2.088W X .494T X .715D HDP-20 METAL SHELL CONNECTOR. TIN PL ATED, CAN BE USED TO BUILD UP CABLES . HAVE MOUNTING FLANGE.	1	Yes
6	46-208781P2	WRITE-ON LABEL FOR MARKING CABLES WHITE ADHESIVE BACKED 0.75~ X 1.90~. UNMARKED, 2,500 PC FAN-FOLD SHEETS (FULL SIZE = 1.9~ X 3.15~.)	2	Yes
7	511A590P182	PIN FOR CPC SERIES 2 & HD-20	24	Yes
8	46-136323P35	BLACK EXPANDED ID .375 SHRINKS APPROXIMATELY 50% U/L & CSA . (REV TK, 1/92) - OK.	3	Yes
21	46-221856P11	TAPE, ELECTRICAL, PVC, COLOR-YELLOW WIDTH .75, .007 THICK	0	Yes
23	46-221856P13	TAPE, ELECTRICAL, PVC, COLOR-BLUE WIDTH .75, .007 THICK	0	Yes
