System Cabinet (with MGD) 5139394

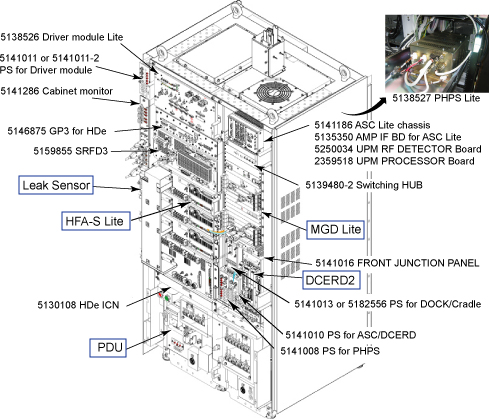

Figure 1. System Cabinet
note:

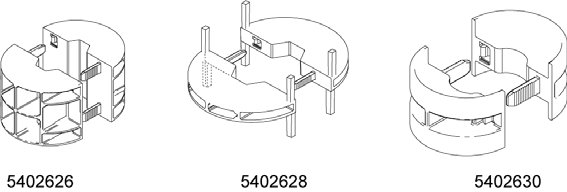

To prevent X-axis polarity swap, mechanical spacers are newly added for forward production from 2Q, 2011.
For IB site, FMI67813A is planned as of 2Q, 2011. The following FRU includes all of spacers required for HDe System.
1 CABINET FRAME ASSY 5172097

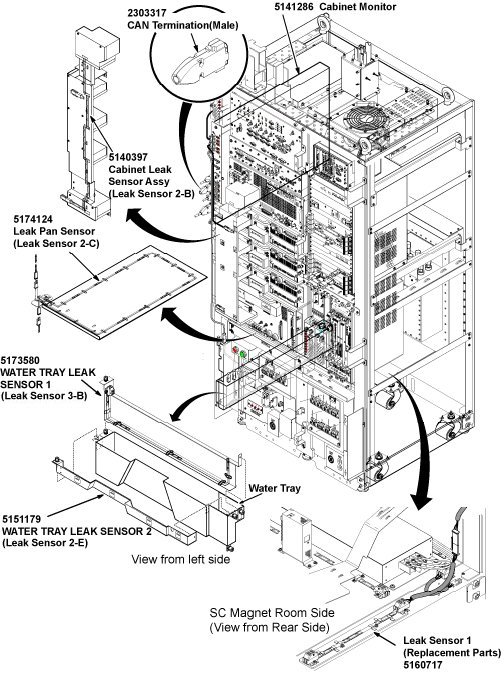

Figure 2. Leak Sensor

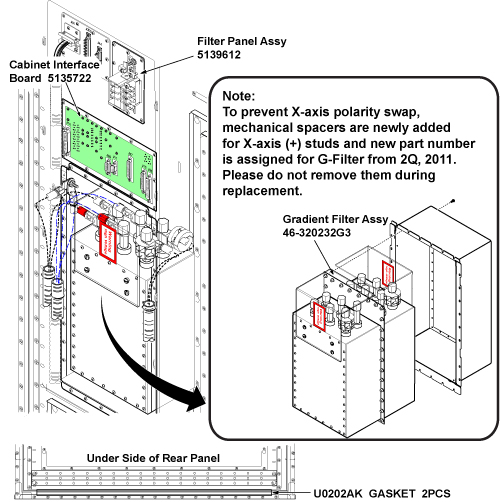

1.1 CABINET REAR PANEL ASSY 5152057
 |
|
Figure 3.

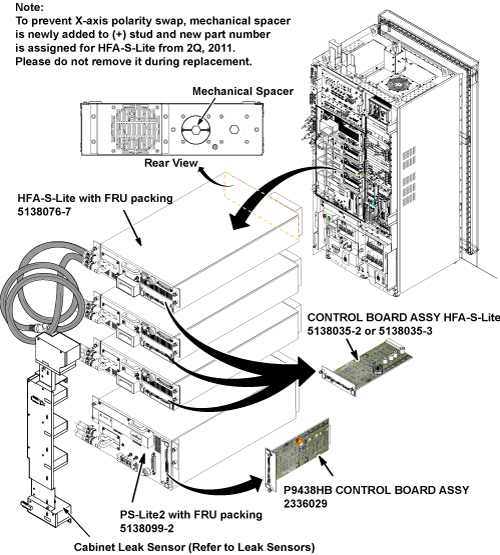

2 HFD-S-LITE Value1.5T 5142856
|
|
Figure 4. HFD-S-LITE Value1.5T 5142856

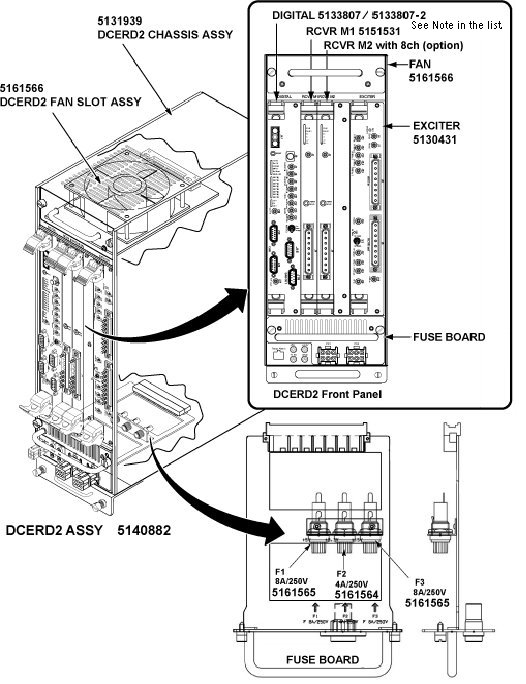

3 DCERD2 ASSY 5140882
Figure 5. DCERD2 ASSY 5140882

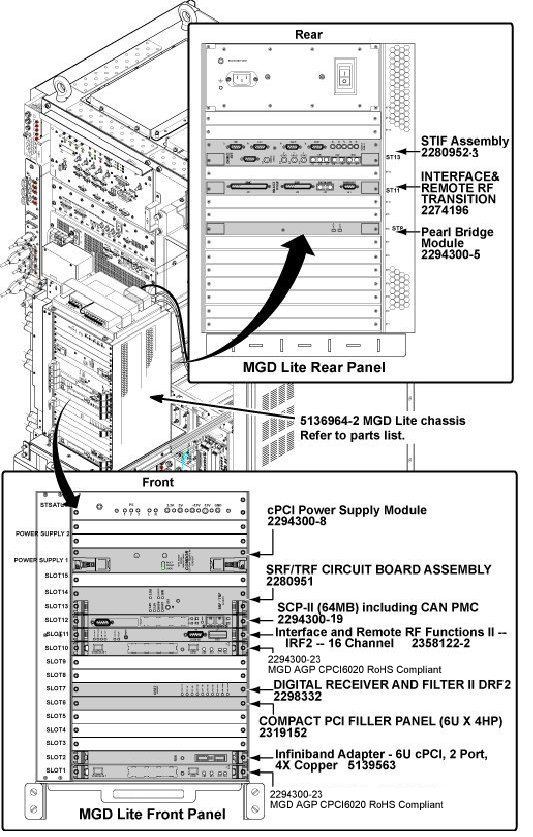

4 MGD-lite and GEMS Board 2320127-6

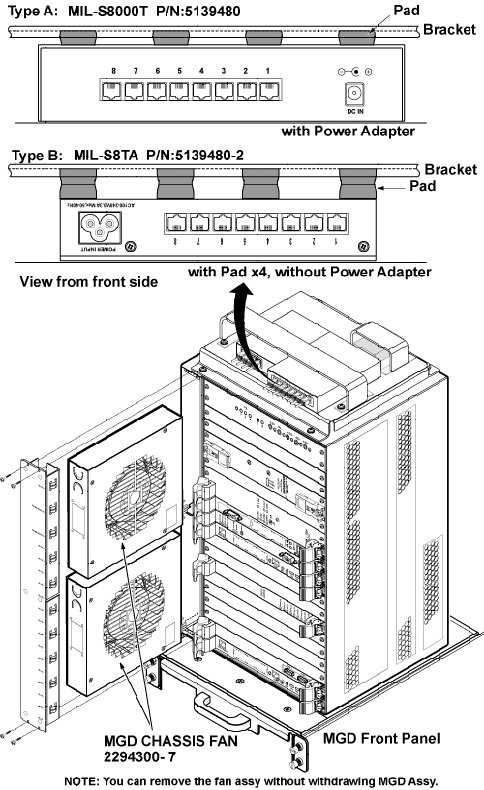

Figure 6. MGD LITE1
Figure 7. MGD LITE 2
5 Driver Module-Lite 5138526

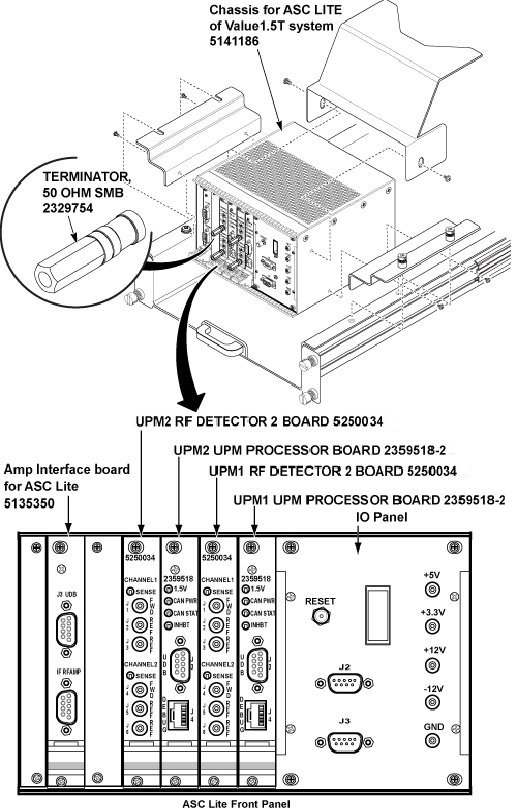

6 Amplifier Support Chassis LITE for Value1.5T system 5134322
Figure 8. ASC LITE

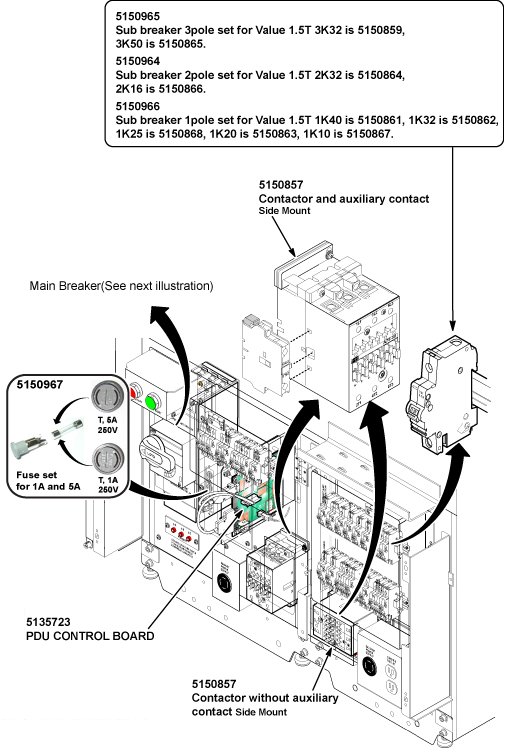

7 PDU Related Parts
Figure 9. PDU

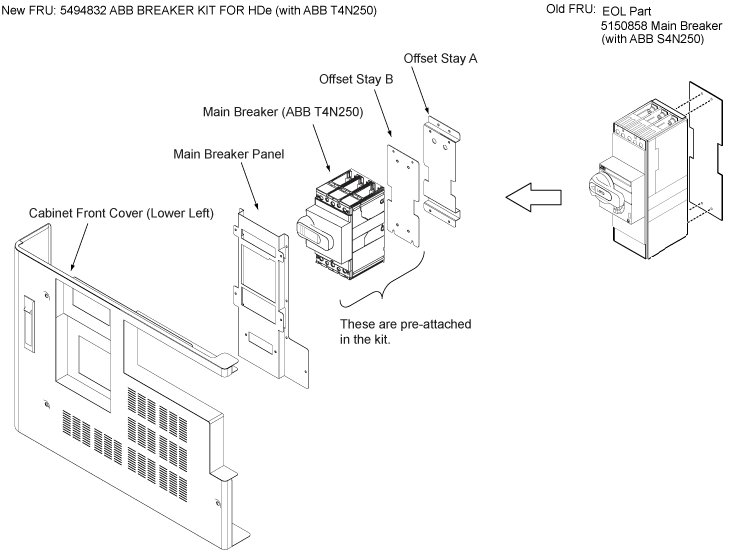

Figure 10. Main Breaker
