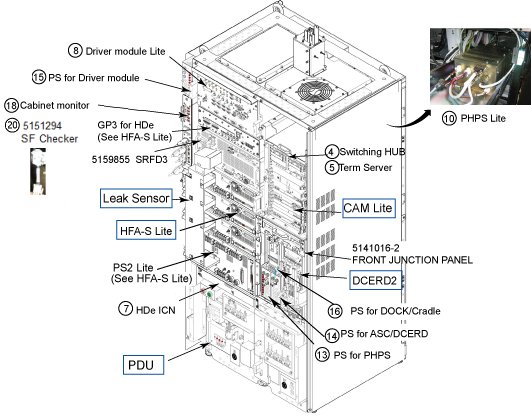

System Cabinet (with CAM-Lite)5139394-3
Figure 1. System Cabinet
note:
To prevent X-axis polarity swap, mechanical spacers are newly added for forward production from 2Q, 2011.
For IB site, FMI67813A is planned as of 2Q, 2011. The following FRU includes all of spacers required for HDe System.
1 CABINET FRAME ASSY 5172097-2
Figure 2. Leak Sensor
1.1 CABINET REAR PANEL ASSY 5152057
 |
|
Figure 3.
1.1.1 DM FILTER ASSY 5151653
Figure 4. DM FILTER ASSY 5151653

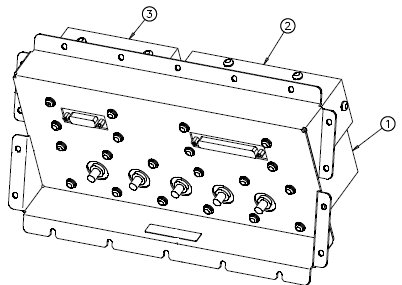

2 HFD-S-LITE Value1.5T 5142856
To prevent X-axis polarity swap, mechanical spacer are newly added to (+) stud of HFA-S-Lite and new FRU part number is assigned from 2Q, 2011.
Figure 5. HFD-S-LITE Value1.5T 5142856
3 DCERD2 ASSY 5140882
Figure 6. DCERD2 ASSY 5140882

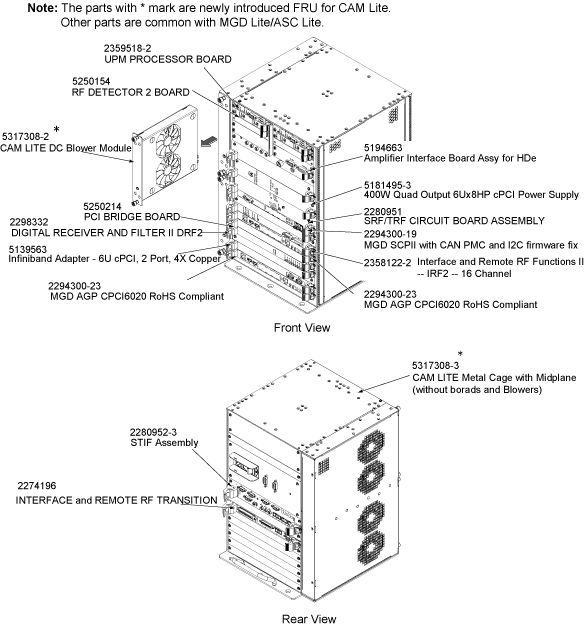

4 CAM LITE
Figure 7. CAM LITE
5 Driver Module-Lite 5138526
6 PDU Related Part
Figure 8. PDU
Figure 9. Main Breaker
