Sprsnap Tool

1 Description

Sprsnap is a utility that can be used to collect error log information, core files, and process status information after a software crash or after a significant software problem has occurred on the Signa scanner.

It's best to create an sprsnap as soon as possible after the system crashes or whatever software problem occurs. Otherwise, the data gets overwritten on reboot and subsequent scanning, erasing the evidence that engineering needs. If the system locks, bring up a C-Shell from service tools (from the background) to run the sprsnap before rebooting the system.

1.1 Sprsnap Procedure

If the scanner has a working InSite connection, then the preferred storage media for the sprsnap is the site's hard drive. Data can be transferred to InSite relatively quickly from an MR system. Most sprsnap directories can be transferred to InSite in about an hour or less. This is easier (and quicker) than mailing a DVD disk to headquarters. Also we would have to reimburse the customer with a new DVD.

The sprsnap will go into a new directory created by the sprsnap program. It will be located in /export/home/snap/ and have the form "Joe.olc-lx.980317063/", (this is only an example) where the first half of this file is the site name, and the last half is a date stamp. (In this example an sprsnap was performed on the LX computer at the OnLine Center on March 17, 1998).

If you choose to save to DVD, the program will ask you if you want to delete the sprsnap directory after writing the DVD. You can answer either “yes” or “no” at this time. However, if you choose “no,” you will have to delete it manually later on. See below for how to delete it.

note:

The storelog program will NOT delete sprsnap for you. It will stay on the disk forever unless you manually delete it.

1.2 How to Create an Sprsnap

  1. Go to the Service Desktop. Start the Service Browser if it is not already running.

  2. In the Service Browser, start the Guided Install tool as shown in Figure 1.

  3. Click on the SprSnap tab in the Guided Install window. See Figure 2.

  4. Provide the necessary information, as shown in Figure 2.

    1. Select yes/no to store Spr information onto DVD.

    2. Enter your name.

    3. Enter the phone number.

    4. Enter a description of the problem.

  5. Click on SPRSNAP.

  6. A pop-up message like that shown in Figure 3 will appear showing the directory your SPRSNAP data was stored in. It may take a few minutes for this window to appear.

  7. Click OK.

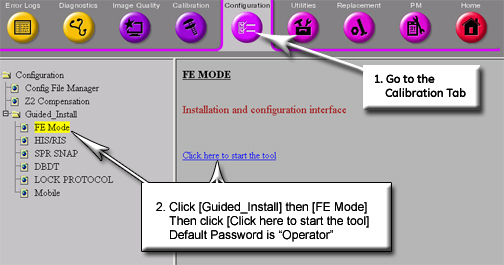

Figure 1. Service Desktop Manager window

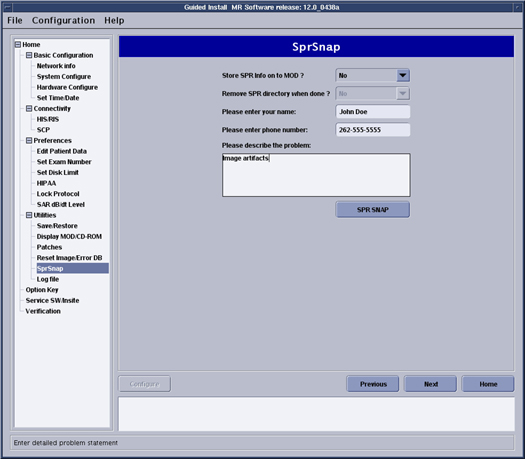

Figure 2. Guided Install window

Figure 3. SPRSnap Directory Message

1.3 How to Transfer Sprsnap to InSite

note:

Stored directory of SPRSNAP was changed to '/export/home/snap/' from '/usr/g/service/log' from HDx14.0 / HDe14.0.

To transfer the sprsnap to InSite, you need to "tar" the sprsnap directory to a file, compress it, and then use the ftp tool to transfer it. From the '/export/home/snap/' directory or '/usr/g/service/log' directory, type the following (and note that it's just an example):

tar -cvf snapfile Joe.olc-lx.9803170638 and press Enter

You can select any file name instead of snapfile, but this makes it easily recognizable. Now the entire contents of the sprsnap directory are also in the file snapfile. It can grow to be a huge file (from 5 to 60 MB), so compress it before transferring it by entering this command:

compress snapfile and press Enter

The new file name will be “snapfile.Z”

Finally, transfer the file to InSite using the ftp tool.

1.4 Sprsnap - Good for Housecleaning

The sprsnap procedure can also be used to clean up a system that may have a number of core files or other error logs (for example, kernel faults) cluttering up the /usr partition.

Create a snap using the sprsnap command and note the name of the directory created during the script execution. Next, use the remove rm command with the recursive -r and force -f options on the directory to delete the snap and its contents. Finish with a check of the space left remaining on the partitions with a df command.

2 Deleting an Sprsnap

  1. First, locate the sprsnap directory in /usr/g/service/log. (Note that this is only an example) using this command:

    cd /export/home/snap/ Enter

    or

    cd /usr/g/service/log Enter

    note:

    Stored directory of SPRSNAP was changed to '/export/home/snap/' from '/usr/g/service/log' from HDx14.0 / HDe14.0.

  2. To display the files in the directory, typels and press Enter.

    Below is sample output:


          IMS.state.log geofile.out.old rdbm_log.out.old



          Joe.olc-lx.9803170808/ gesys_olc-lx.log review.out



          TIR.log grxfile.out review.out.old



          TIR.log.old ifcc.out satfile.out



          TriggerList ifcc.out.old saveINFO.log



          atp_svat.trace psc.log scn.out



          diskfull.log psc.log.old scn.out.old



          geofile.out rdbm_log.out tds.log


See the example above. You can recognize the sprsnap directory by the combination site name and date stamp as part of its directory name. It also has a "/" at the end, indicating that it is a directory. To make sure, you could go into that directory and list its contents.

To delete the directory, you must be root user. Enter the following command from the upper-level directory ”/usr/g/service/log”:

rm -r -f Enter

A sample command might be:: rm -r -f Joe.olc-lx.9803170808

”-r” deletes the sprsnap directory recursively (first it deletes all contents, and then the directory itself), and “-f” forces all files to be deleted without asking permission. If you leave off the “-f”, you'll have to type “y” to give permission to delete each file, which will take some time.

Also deleted the “tar'd” file also, “snapfile” or “snapfile.Z”, if compressed. Delete it like any other file. For example:

rm snapfile

note:

Be careful deleting the sprsnap directory. Don't use any wildcards or you may regret it later when you find you've deleted the wrong thing(s). Each sprsnap will have its own directory in /usr/g/service/log.

Below is a sample of what goes into an sprsnap. Note that this is an example only.


          insite# ls Joe.olc-lx.9803170638/



          AUTHOR mr.closure.MrpApps#



          HEADER_POOL* mr.closure.MrpResSrv#



          IMS.state.log mr.closure.PostSdC#



          MR.Date.out mr.closure.driverSupport62#



          MR.Hostname.out mr.closure.install



          MR.printenv.out mr.closure.os_cd



          MR.whatRev.out mr.swrev*



          SPR_DESCRIPTION oSYSLOG



          SPRsnapErrLog ps.info



          SYSLOG psc.log



          TAPEREV* psc.log.old



          TIR.log rdbm_log.out



          TIR.log.old rdbm_log.out.old



          TriggerList review.out



          atp_svat.trace review.out.old



          config/ rpc.info



          core.mrt_rfmgr.17Mar002615 satfile.out



          core.scn.04Mar092915 saveINFO.log



          core.scn.09Mar112338 scn.out



          crashdump/ scn.out.old



          df.info sdc.info/



          diskfull.log sdcStartupLog.649



          fstab state/



          geofile.out swap.info



          geofile.out.old system.info



          gesys_olc-lx.log tds.log



          grxfile.out where.mrt_rfmgr.17Mar002615



          hosts where.scn.04Mar092915



          ifcc.out where.scn.09Mar112338



          ifcc.out.old xdm-errors



          messages



          config:



          CoilConfig.cfg gasm1.cfg




          CoilConfig.cfg.0.5T gasm2.cfg



          CoilConfig.cfg.1.0T gdt_tolerances.cfg



          CoilConfig.cfg.1.5T gip_signals.cfg



          CoilConfig.vf goofy



          CoilConfig.vf.0.5T install.cfg



          CoilConfig.vf.1.0T ipg_stage*



          CoilConfig.vf.1.5T ipg_stage.qtune*



          DateTime.cfg lvshim.cfg*



          GradientConfig.cfg mr_gshim_config



          GradientConfig.cfg.120.ECHOSPEED netinfo.cfg.old



          GradientConfig.cfg.120.ECHOSPEED_SGD pages



          GradientConfig.cfg.20.HORIZON palette.cfg



          GradientConfig.cfg.20.HORIZON_SGD prescan_config.cfg



          GradientConfig.cfg.77.HISPEED purgeFileList



          GradientConfig.cfg.77.HISPEED_SGD scan.cfg*



          GradientConfig.vf scan.vf*



          Host.cfg secureSystem.cfg



          Host.cfg.old secureSystemDVD.cfg



          IOConfigFileOC.cfg sgd_tolerances.cfg



          MRconfig.cfg shim_max16c6.coeff



          MRconfig.cfg% shim_max16c6.coils



          MRconfig.cfg.0.5T shim_max18c6.coeff



          MRconfig.cfg.1.0T shim_max18c6.coils



          MRconfig.cfg.1.5T shim_s1c6.coeff



          MRconfig.cfg.old shim_s1c6.coils



          MRconfig.vf shim_s2c6.coeff



          MRconfig.vf.0.5T shim_s2c6.coils



          MRconfig.vf.1.0T shim_s3c6.coef



          MRconfig.vf.1.5T shim_s3c6.coils



          MRsrv.def shim_s4c6.coeff



          MrPatProtocols.cfg shim_s4c6.coils



          PageConfig.cfg shim_sxc6.coeff



          Resource.cfg shim_sxc6.coils



          ResourceTable.cfg shim_v6c6.coeff



          ShimConfig.cfg shim_v6c6.coils



          Site.cfg sprFiles.3



          Suite.cfg sprFiles.6



          Suite.cfg.old sprFiles.7



          TPS_config sprFiles.8



          TPS_config.lfc spt_nesting



          TPS_config.old storelog.cfg



          asm.cfg tardis_stage



          checkdisk.cfg watchswap.cfg



          gasm0.cfg



          crashdump:



          README_FIRST minfree



          sdc.info:



          crashlog.Z logs.tar.Z sdc.conf



          state:



          Images.50001.1.1 SaveExamNum rxcoil



          SaveDiagExamNum SaveExamNum.old



          SaveDiagExamNum.old avStateFile
