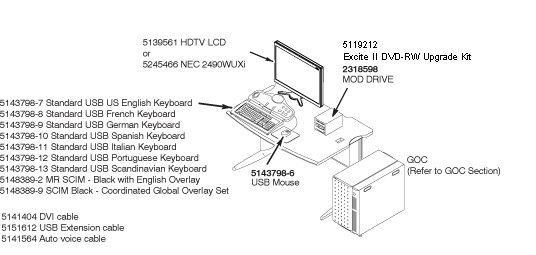

Signa HDe 1.5T Desktop Collector 5161810 Rev9

Table 1.
Item	Part Number	Description	Qty	FRU	Lower Assy
4	5161810	Signa HDe 1.5T Desktop Collector	1.0	No	Signa HDe 1.5T Desktop Collector 5161810
5	5160071	Wide-Screen Display Collector for 23 inch High Definition	1.0	No	Wide-Screen Display Collector for 23 inch High Definition 5160071
		Keyboard		No	Keyboard
		Software		No	SOFTWARE COLLECTOR HDE15

1 Signa HDe 1.5T Desktop Collector 5161810

Table 2. Signa HDe 1.5T Desktop Collector 5161810
Item	Part Number	Description	Qty	FRU	Lower Assy
1	5169226	Mouse Pad of Optical counterpart.	1.0	Yes
2	46-317758P1	PNEUMATIC PATIENT ALERT SYSTEM	1.0	Yes	PNEUMATIC PATIENT ALERT SYSTEM 46-317758P1
3	5116657	EXCITE III SCSI TOWER ASSY WITH MOD AND DVD-RW	1.0	No	EXCITE III SCSI TOWER ASSY WITH MOD AND DVD-RW 5116657
4	5763460	Two-Button USB Scroll Mouse	1.0	Yes
5	5145298	MCR3 Tool_1.5T	1.0	No	MCR3 Tool_1.5T 5145298
7	5140888	Surface Coil Adaptor Single Ch., 1.5T - HDx	1.0	Yes
8	5182681-2	Gradient Cable Clamp Block Kit - BRM Injection Molded	1.0	Yes
	5166784-2	APPLICATION DVD HDE14 M4	1.0	Yes
	5183282	BIOS UPDATE TO 1.40 CD-ROM FOR XW9300 HDe	1.0	Yes
	5193460	SERVICE PACK 1 CD HDE14 M4	1.0	Yes

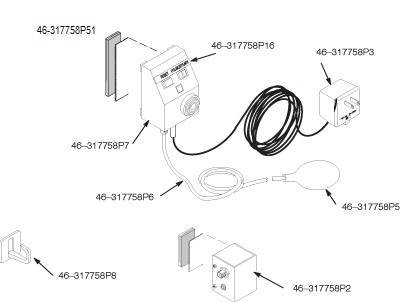

1.1 PNEUMATIC PATIENT ALERT SYSTEM 46-317758P1

Table 3. PNEUMATIC PATIENT ALERT SYSTEM 46-317758P1
Item	Part Number	Description	Qty	FRU	Lower Assy
	46-317758P18	10 foot tubing, pneumatic, with bulb bonded to tubing	1.0	Yes
	46-317758P2	EXTENDER BOX/WIRE FOR OPR ALERT SYS.	1.0	Yes
	46-317758P3	MAGNACOUSTICS 12V 60HZ POWER SUPPLY	1.0	Yes
	46-317758P6	PNEUMATIC TUBING, 115FT LENGTH WITH SQUEEZE BULB BONDED TO TUBING	1.0	Yes
	46-317758P7	ALARM UNIT CONTROL BOX	1.0	Yes
	46-317758P8	SQUEEZE BULB HANGER, STICK-ON TYPE	1.0	Yes
	46-317758P9	PLASTIC FEED-THRU CONNECTORW/CLIP	1.0	Yes

1.2 EXCITE III SCSI TOWER ASSY WITH MOD AND DVD-RW 5116657

Table 4. EXCITE III SCSI TOWER ASSY WITH MOD AND DVD-RW 5116657
Item	Part Number	Description	Qty	FRU	Lower Assy
1	5119212	Excite III DVD-RW Upgrade Kit (Includes DVD-RW Internal Drive and ADAPTER for SCSI TO IDE BRIDGE)	1.0	Yes
3	2318598	SONY MOD SMO-F551-SD	1.0	Yes

1.3 MCR3 Tool_1.5T 5145298

Table 5. MCR3 Tool_1.5T 5145298
Item	Part Number	Description	Qty	FRU	Lower Assy
1	5146208	Cable Assembly MCR3 Tool	1.0	Yes
2	5146212	MCR3 Tool Enclosure 1.5T_HDMR2	1.0	Yes
5	46-136246P14	2~ WIDE, WHT, ADH BACK, VELCRO LOOP 25 YD	1.0	Yes
6	46-136246P21	2~ WIDE X 25 YD WHITE VELCRO HOOKS	1.0	Yes

2 Wide-Screen Display Collector for 23 inch High Definition 5160071

Table 6. Wide-Screen Display Collector for 23 inch High Definition 5160071
Item	Part Number	Description	Qty	FRU	Lower Assy
	5139561	Wide-screen Monitor - 23 inch High Definition	1.0	Yes
	5245466	WIDE-SCREEN 24 INCH COLOR MONITOR LCD 2490WUXi BLACK with MR SW	1.0	Yes

3 Keyboard

Table 7. Keyboard
Item	Part Number	Description	Qty	FRU	Lower Assy
	5143798-7	Standard USB US English Keyboard	1.0	Yes
	5143798-8	Standard USB French Keyboard	1.0	Yes
	5143798-9	Standard USB German Keyboard	1.0	Yes
	5143798-10	Standard USB Spanish Keyboard	1.0	Yes
	5143798-11	Standard USB Italian Keyboard	1.0	Yes
	5143798-12	Standard USB Portugeese Keyboard	1.0	Yes
	5143798-13	Standard USB Scandinavian Keyboard	1.0	Yes
	5148389-2	MR SCIM - Black with English Overlay	1.0	Yes
	5148389-9	MR SCIM - Black Coordinated Global Overlay Set (French, German, Italian, Portuguese, Spanish, Mandarin, Danish, Dutch, Norwegian, Finnish, Swedish, Scandinavian, Japanese and Korean)	1.0	Yes

4 SOFTWARE COLLECTOR HDE15

Table 8. Software Collector HDE15
	OS	Application	Service Pack CD	Res SV Software	Adv SV Software	MrpApps (Note)	FMI
M4+SP8	CTT Linux OS 6.3.8 DVD	APPLICATION SOFTWARE COLLECTOR HDE15 M4 + SP3	SERVICE PACK COLLECTOR HDE15 M4 SP8	RESTRICTED SERVICE DVD HDE15 M4	ADVANCED SERVICE DVD HDE15 M4	HDE15.0_M4_0943.c	FMI67816C
M4+SP8	5178202	5370296	5454828	5405271	5405275

Note : Check the MrpApps version and ServicePack version by entering 'getver' in command window.
