SIGNA PATIENT TRANSPORT HDMR-2 5146012

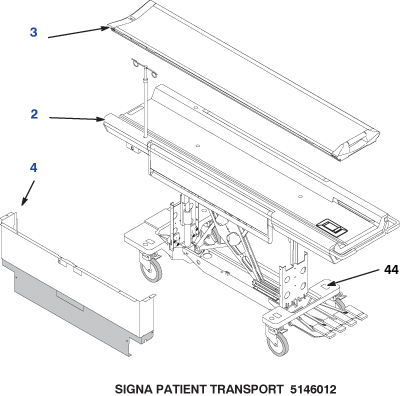

Figure 1. SIGNA PATIENT TRANSPORT HDMR-2 5146012

TABLE BASE ASSY 5159981 CRADLE ASSY 5159990 TABLE COVER KIT 5161680

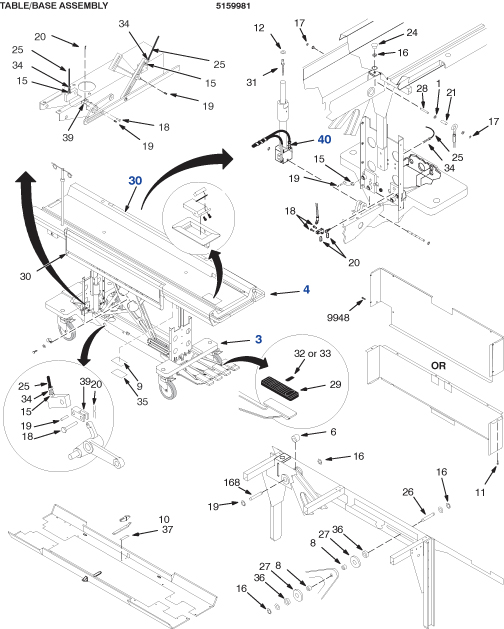

1 TABLE BASE ASSY 5159981

Figure 2. TABLE BASE ASSY 5159981

TABLE BASE KIT 5159982 TABLE TOP 5159988 Amboard assy 5161493 Amboard assy 5161493 HYDRAULIC OIL FILTER AND GASKET FILTER 46-307878G1

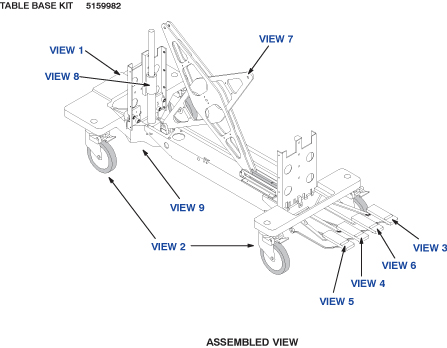

1.1 TABLE BASE KIT 5159982

Figure 3. TABLE BASE KIT 5159982

View1 View2 View3 View4 View5 View6 View7 HYDRAULIC CYLINDER AREA HOOK AREA

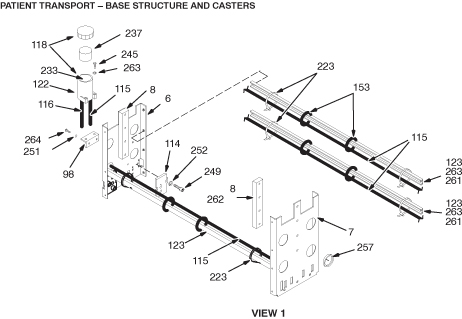

Figure 4. View1

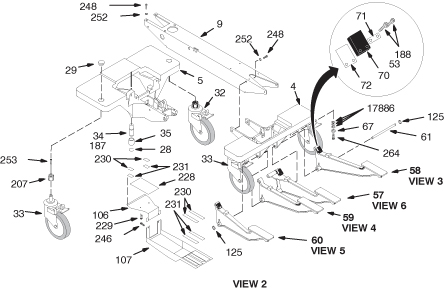

Figure 5. View2

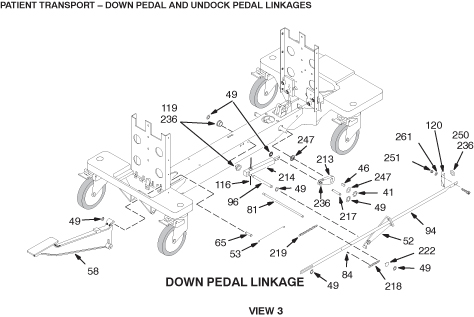

Figure 6. View3

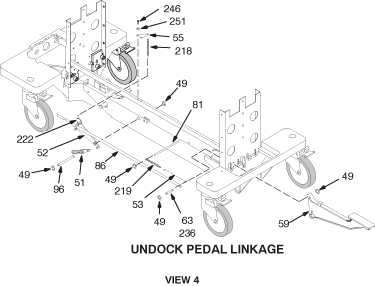

Figure 7. View4

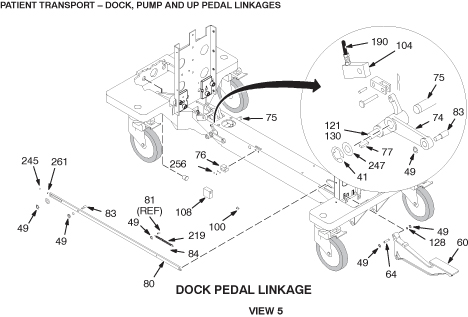

Figure 8. View5

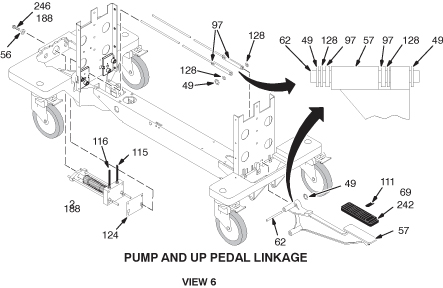

Figure 9. View6

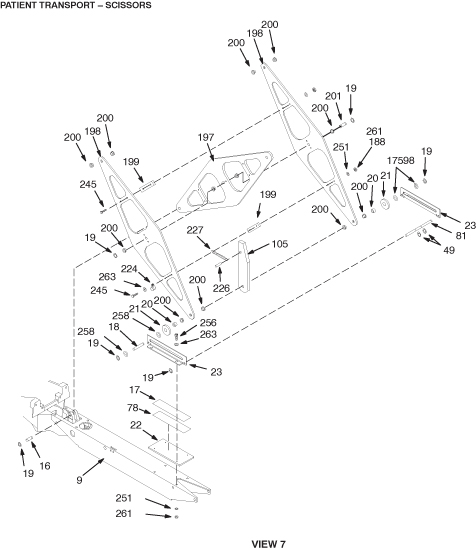

Figure 10. View7

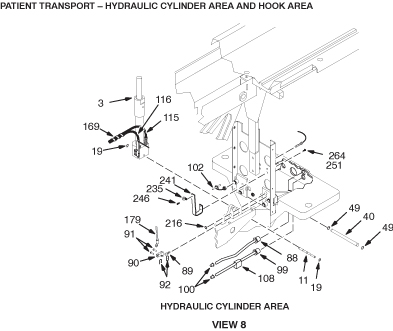

Figure 11. HYDRAULIC CYLINDER AREA

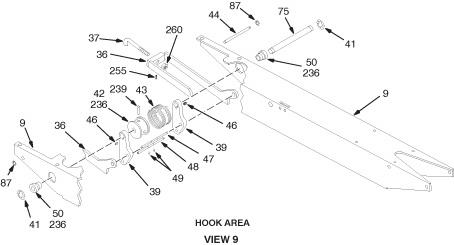

Figure 12. HOOK AREA

1.1.1 HYDRAULIC PUMP ASSEMBLY MRTBL2 PATIENT TRANSPORT 46-265779G1

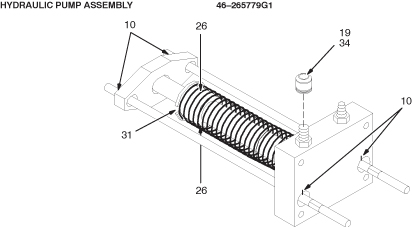

Figure 13. HYDRAULIC PUMP ASSEMBLY 46-265779G1

1.1.2 HYDRAULIC CYLINDER, TABLE ELEVATING MRTBL2 PATIENT TRANSPORT 46-265780G1

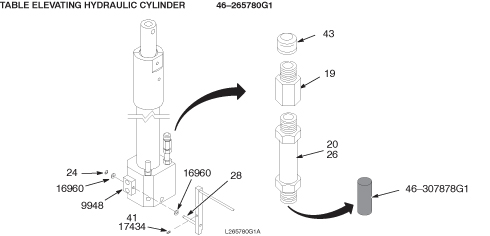

Figure 14. HYDRAULIC CYLINDER 46-265780G1

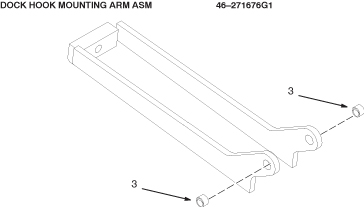

1.1.3 DOCK HOOK MOUNTING ARM WELDMENT ASM 46-271676G1

Figure 15. DOCK HOOK MOUNTING ARM ASM 46-271676G1

1.1.4 PUMP PEDAL ASM INFINITY COLOR 46-271031G9

Figure 16. PUMP PEDAL ASM INFINITY COLOR 46-271031G9

1.1.5 PUMP PEDAL ASM INFINITY COLOR 46-271031G10

Figure 17. PUMP PEDAL ASM INFINITY COLOR 46-271031G10

1.1.6 PUMP PEDAL ASM INFINITY COLOR 46-271031G11

Figure 18. PUMP PEDAL ASM INFINITY COLOR 46-271031G11

1.1.7 PUMP PEDAL ASM INFINITY COLOR 46-271031G12

Figure 19. PUMP PEDAL ASM INFINITY COLOR 46-271031G12

1.1.8 UP INDICATOR ROD ASSEMBLY 46-271916G1

Figure 20. UP INDICATOR ROD ASSEMBLY 46-271916G1

1.1.9 14.13~ LONG ALUM ROD W/BUMPER 46-271517G1

1.1.10 RIGHT ACTUATOR 46-271516G1

1.1.11 MECHANICAL LINKAGE 46-271576G1

1.2 TABLE TOP 5159988

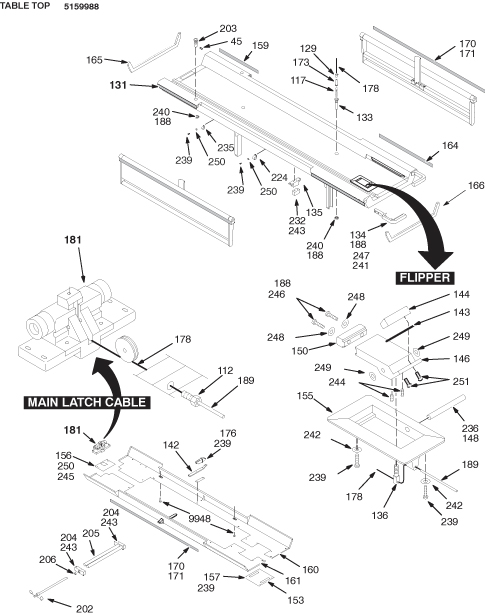

Figure 21. TABLE TOP 5159988

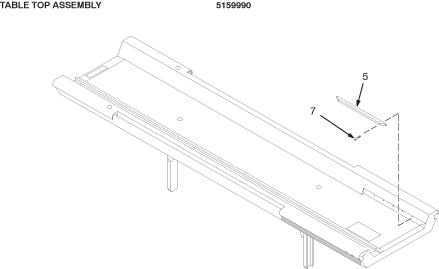

1.2.1 Table top assembly 5146627

Figure 22. Table top assembly 5146627

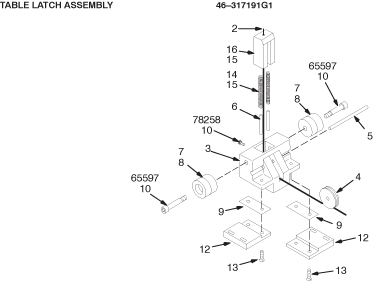

1.2.2 TABLE LATCH ASSEMBLY 46-317191G1

Figure 23. TABLE LATCH ASSEMBLY 46-317191G1

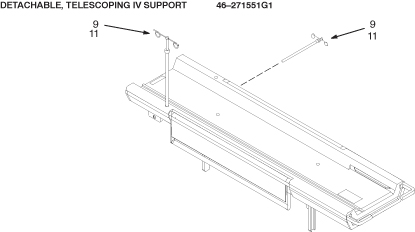

1.2.3 DETACHABLE, TELESCOPING IV SUPPORT MRTBL2 46-271551G1

Figure 24. DETACHABLE, TELESCOPING IV SUPPORT MRTBL2 46-271551G1

1.3 Amboard assy 5161493

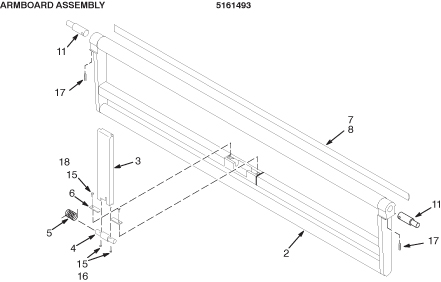

Figure 25. Amboard assy 5161493

1.4 HYDRAULIC OIL FILTER AND GASKET FILTER 46-307878G1

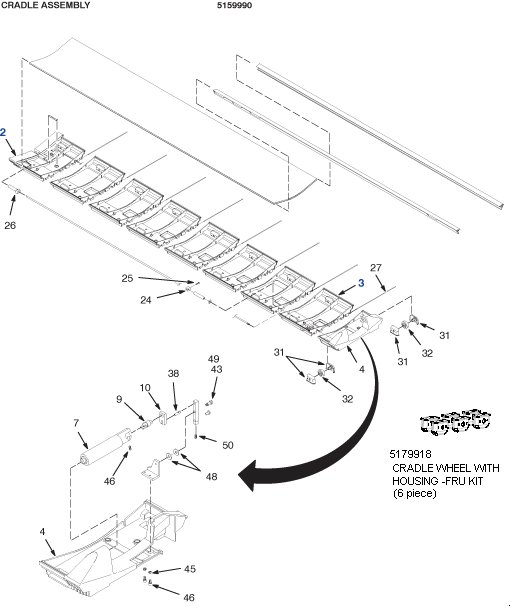

2 CRADLE ASSY 5159990

Figure 26. CRADLE ASSY 5159990

CRADLE FRONT SECTION ASSY　5159991 CRADLE MID SECTION ASSY　5159993

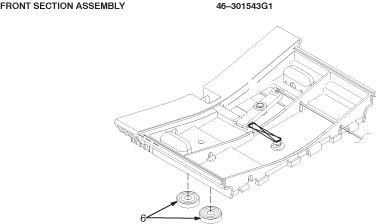

2.1 CRADLE FRONT SECTION ASSY　5159991

Figure 27. CRADLE FRONT SECTION ASSY　5159991

2.2 CRADLE MID SECTION ASSY　5159993

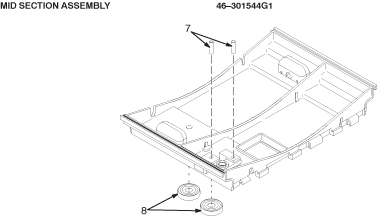

Figure 28. CRADLE MID SECTION ASSY　5159993

3 TABLE COVER KIT 5161680

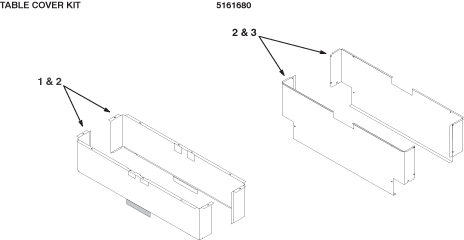

Figure 29. TABLE COVER KIT 5161680

3.1 OUTER COVER 　5159989

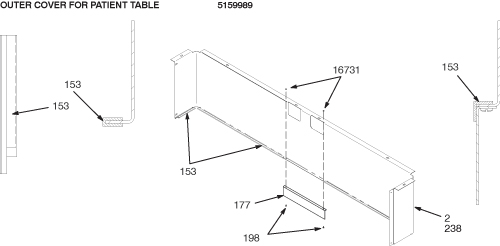

Figure 30. OUTER COVER 　5159989

3.2 OUTER COVER　5159989-2

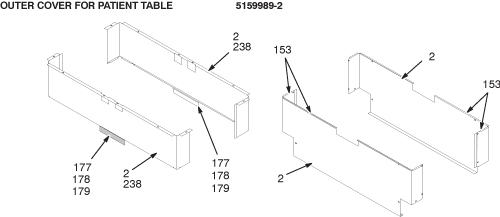

Figure 31. OUTER COVER　5159989-2
