Rear Pedestal 5159685 Rev9

note:

The number in illustration corresponds to the item number in the following list.

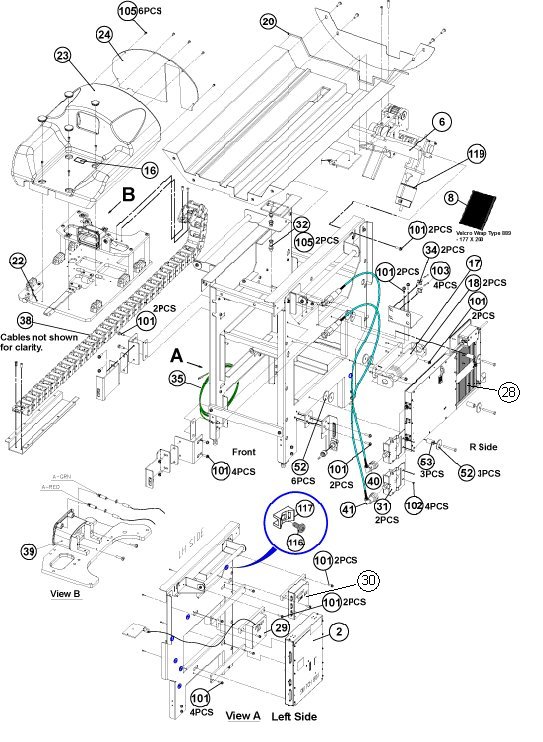

Figure 1. Rear Pedestal

1 VALUE, REAR PEDESTAL, MOTOR DRIVE ASSY 5151697

Figure 2. VALUE, REAR PEDESTAL, MOTOR DRIVE ASSY 5151697

2 Value LPCA without Cover 5140971

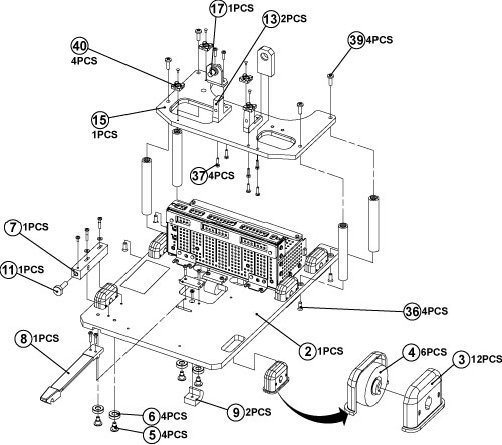

Figure 3. Value LPCA without Cover 5140971

2.1 Multicoil Interface Module for Vaule 1.5T and HDMR_2 5137347

3 Body Hybrid TR SW for Value 5145620

4 PATIENT COMMUNICATION BOX, MG3 A2 for Value 5182557
