Magnet Enclosure Display Test

1 Diagnostic Link

Diagnostics >> System Function >> Patient Handling >> SRI Functional Tests

Diagnostics >> Hardware Location >> Magnet Room >> SRI Functional Tests

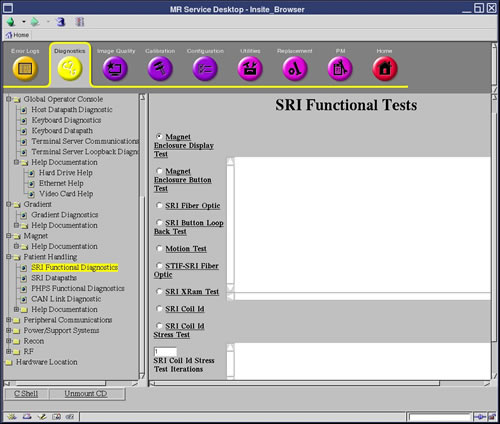

Figure 1. SRI Functional Diagnostics

2 Purpose

This test provides a quick method of testing the control panel display.

3 Components Tested

  • Magnet Enclosure Operator Control Pushbuttons

4 Requirements

None

5 Test Sequence

  1. Select Magnet Enclosure Display Test.

  2. Click Run.

6 Expected Results

  1. Verify all LEDs turn on and that no LED remains on throughout the entirety of the test Figure 2.

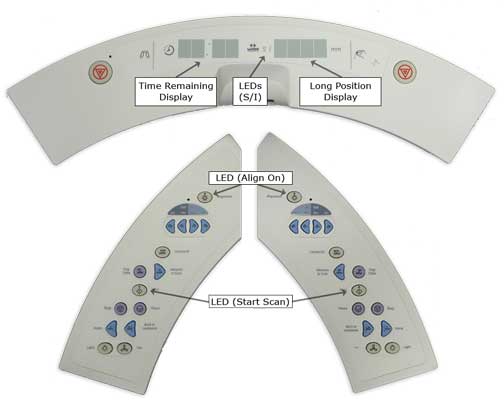

    Figure 2. Display Test Indicators

  2. When test is complete, click Stop to end the test.
