Item
|
Part Number
|
Description
|
Qty
|
FRU
|
Lower
|
| 1 |

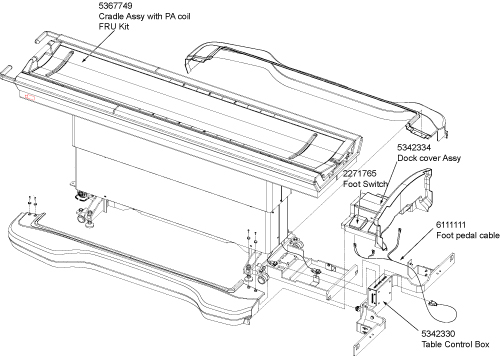

5367749 |
Cradle Assy with PA coil FRU Kit |
1 |
Yes |
Table 2
|
| 2 |

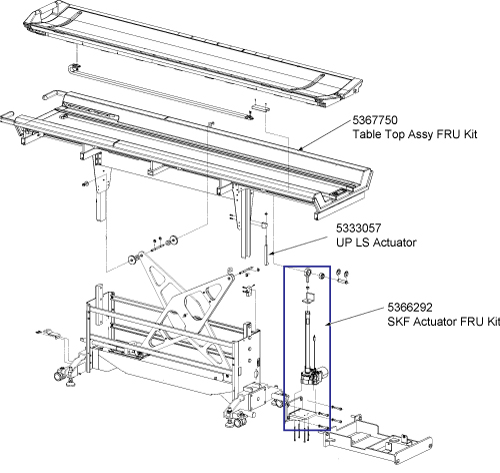

5367750 |
Table Top Assy FRU Kit |
1 |
Yes |
|
| 3 |
5342334 |
Dock cover Assy |
1 |
Yes |
|
| 4 |
2271765 |
Foot Switch |
4 |
Yes |
|
| 5 |
6111111 |
Foot pedal cable |
1 |
Yes |
|
| 6 |

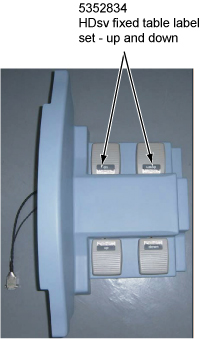

5352834 |
HDsv fixed table label set - up and down |
1 |
Yes |
|
| 7 |
5333057 |
UP LS Actuator |
1 |
Yes |
|
| 8 |

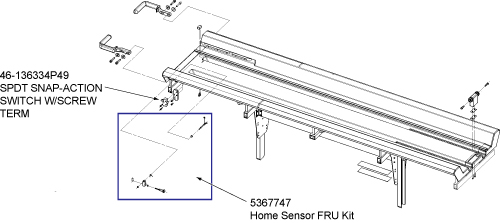

46-136334P49 |
SPDT SNAP-ACTION SWITCH W/SCREW TERM |
2 |
Yes |
|
| 9 |
5366292 |
SKF Actuator FRU Kit |
1 |
Yes |
|
| 10 |
5367747 |
Home Sensor FRU Kit |
1 |
Yes |
|
| 11 |
5342330 |
Table Control Box |
1 |
Yes |
|
| 12 |

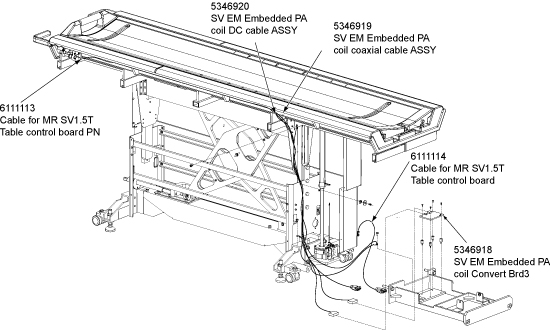

6111113 |
Cable for MR SV1.5T Table control board PN:
5323060 |
1 |
Yes |
|
| 13 |
6111114 |
Cable for MR SV1.5T Table control board PN:
5323060 |
1 |
Yes |
|
| 14 |
5346919 |
SV EM Embedded PA coil coaxial cable ASSY |
1 |
No |
|
| 15 |
5346920 |
SV EM Embedded PA coil DC cable ASSY |
1 |
No |
|
|
|
5420619 |
RF Cable Clamp assembly (RF Cable + Cable Clamp
Assy) |
1 |
Yes |
|
|
|
5420620 |
DC Cable FRU kit (DC Cable + Cable Clamp Assy) |
1 |
Yes |
|
|
|
5420624 |
DC Cable Clamp FRU kit (Cable Clamp Assy) |
1 |
Yes |
|
| 16 |
5346918 |
SV EM Embedded PA coil Convert Brd3 |
1 |
Yes |
|
| 17 |

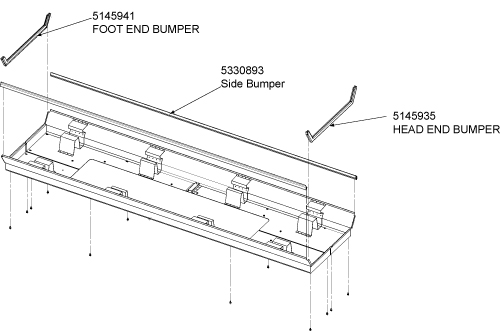

5145941 |
FOOT END BUMPER |
1 |
Yes |
|
| 18 |
5145935 |
HEAD END BUMPER |
1 |
Yes |
|
| 19 |
5330893 |
Side Bumper |
2 |
Yes |
|
