Enclosure and Gradient Assembly

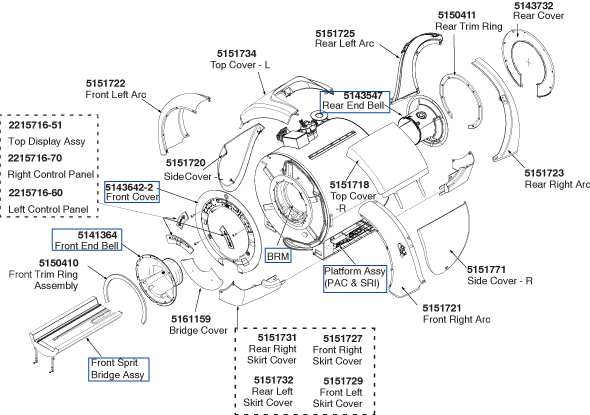

Figure 1. Enclosure and Gradient Assembly

Front Cover Assembly 5143642-2 Front End Bell BRM Assembly 5160993 VALUE FRONT SPLIT BRIDGE ASSY 5147766 Rear End Bell BRM Assembly 5160995 HDe Platform Asm, PAC and SRI Mounting 5119654-2 1.5T BRM-F Gradient Coil, GEHC N9

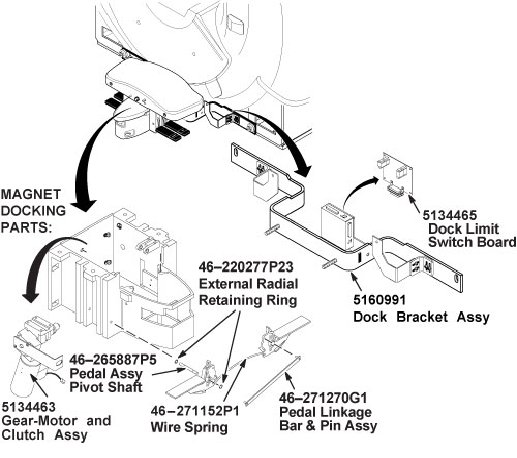

Figure 2. Dock Assy

1 Front End Bell BRM Assembly 5160993

2 Rear End Bell BRM Assembly 5160995

3 Front Cover Assembly 5143642-2

note:

From FW37, 2010, it is required to attach Chinese Laser label for forward production of Signa HDe second edition in China. If it is necessary to replace any of the following parts, please check that the Chinese Laser Labels are attached on your system.

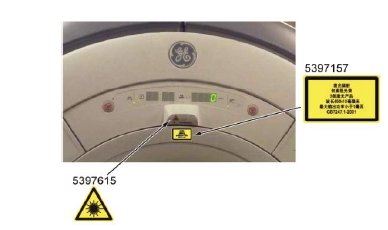

Figure 3. SFDA Chinese Laser Label

4 VALUE FRONT SPLIT BRIDGE ASSY 5147766

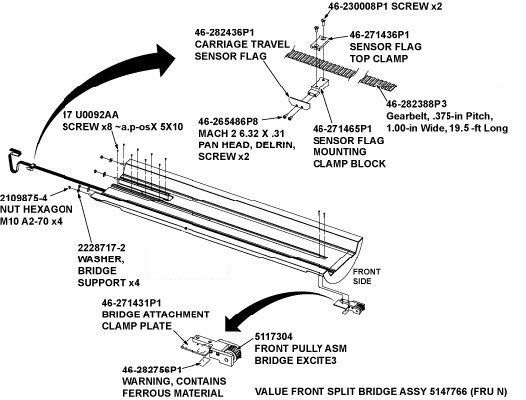

Figure 4. VALUE FRONT SPLIT BRIDGE ASSY 5147766

5 1.5T BRM-F Gradient Coil, GEHC N9

6 HDe Platform Asm, PAC and SRI Mounting 5119654-2

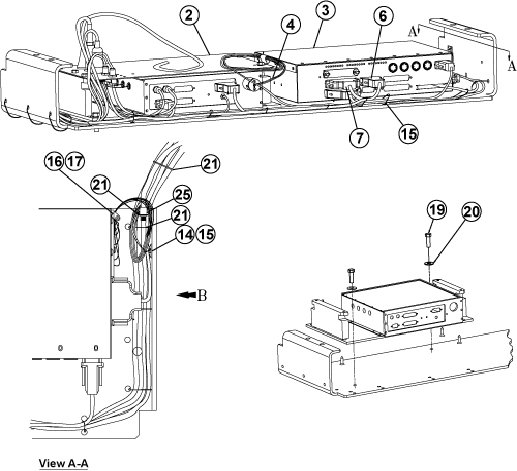

Figure 5. Platform Asm, PAC and SRI Mounting

7 HDx, HDe Enclosure Hardware Spares Kit 5164786
