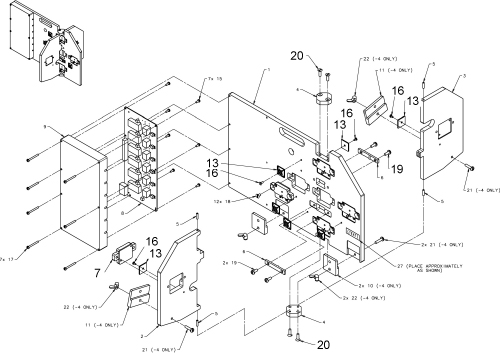

6-Coil ECMT Kit, 1.5T - 5135527

Table 1. 6-Coil ECMT Kit, 1.5T - 5135527
Item	Part Number	Description	Qty	FRU	Lower Assy
1	5135511	Coil Plate, Center		No
2	5135512	Coil Plate, Left		No
3	5135513	Coil Plate, Right		No
4	5137938	Hinge Block		No
5	5145324	Hinge Pin		No
6	2392854	ECMT DETENT BLOCK		No
7	5135514	Match and Tune Clam Assembly, 1.5T	Yes	Yes	Match and Tune Clam Assembly, 1.5T 5135514
8	5250102	1.5T GRAFIDY TR BOARD		No	1.5T GRAFIDY TR BOARD 5250102
9	5135519	TR Board Cover		No
12	5136778	Cable Assembly, Grafidy Service Tool		No
13	46-208747P2	ADHESIVE MOUNT - CABLE TIE		Yes
14	46-208758P2	5.5~ X .140~ SELF-LOCKING CABLE TIE. 1/16~ TO 1-1/4~ WIRE BUNDLE RANGE. 30LB TENSILE STRENGTH, NYLON MATR~L.		Yes
15	5135971-13	M4x10, Screw, Metric, Nylon, Slotted Pan Head, ISO 1580, DIN 85 A		No
17	5135971-19	M4x35, Screw, Metric, Nylon, Slotted Pan Head, ISO 1580, DIN 85 A		No
18	5135972-26	M6x10, Screw, Metric, Nylon, Slotted Flat Head, ISO 2009, DIN 936 A		No
23	5135521	Case, 6-coil ECMT		No
24	5135522	Nameplate, 1.5T 6-Coil ECMT		No
27	2217075-2	CE and WEEE Label without G-MED Notified Body #		No

1 Match and Tune Clam Assembly, 1.5T 5135514

Table 2. Match and Tune Clam Assembly, 1.5T 5135514
Item	Part Number	Description	Qty	FRU	Lower Assy
1	5135515	Match and Tune Clam, Top		No
2	5135516	Match and Tune Clam, Bottom		No
3	5250100	MATCH AND TUNE		No
4	46-214704P5	CHEESE HEAD SCREW, NYLON, M4 X 8MM		Yes
5	5138318	Label, Match and Tune Clam Assembly, 1.5T		No

2 1.5T GRAFIDY TR BOARD 5250102

Table 3. 1.5T GRAFIDY TR BOARD 5250102
Item	Part Number	Description	Qty	FRU	Lower Assy
1	5250103	1.5T GRAFIDY BOARD		No
2	46-230729P1	BAR CODE LABEL		No
3	5135015	Grounding Spring for Preamp Modules		No
4	1002787P289	#18 B.T.C.W.		No
5	46-208758P2	5.5~ X .140~ SELF-LOCKING CABLE TIE. 1/16~ TO 1-1/4~ WIRE BUNDLE RANGE. 30LB TENSILE STRENGTH, NYLON MATR~L.		Yes
6	5117237	D-sub female jackscrew kit, stainless steel		No
7	46-170683P1	LOCTITE 222, 10CC BOTTLE 12 MONTH SHELF LIFE FROM DATE OF SHI PMENT FROM THE MANUFACTURER		Yes
	2342954-79	CAPACITOR FIXED 1000p FARADS 50 VOLT +-2% NON-MAGNETIC SOLDER PLATE		No
	5136953	Cable, Service Grafidy TR Board, J1		No
	5136953-2	Cable, Service Grafidy TR Board, J2		No
	5136953-3	Cable, Service Grafidy TR Board, J3		No
	5136953-4	Cable, Service Grafidy TR Board, J4		No
	5136953-5	Cable, Service Grafidy TR Board, J5		No
	5136953-6	Cable, Service Grafidy TR Board, J6		No
	2112514-10	CONNECTOR SUBD NON-MAGNETIC, 8W8 COAXIAL CONTACTS, SOCKET, RIGHT-ANGLE, 6.35MM PITCH, 4_40_THREADED_INSERT		No
	2112514-11	CONNECTOR SUB-D NON-MAGNETIC, 5W1 COAXIAL CONTACTS, SOCKET, RIGHT-ANGLE, FOR .063in PCB ONLY		No
	2253723-2	MEMORY EEPROM 64k BIT 1 BIT		No
	5133066	1.5T PRE-AMP LARGE FOOTPRINT		No
	46-221945P68	CAPACITOR FIXED .1u FARADS 50 VOLTS		No
	46-221945P71	CAPACITOR 22N, NON MAGNETIC, 20 PERCENT, 50V, MULTILAYER PORCELAIN, SOLDER PLATE, LEAD FREE		No
	2342954-61	CAPACITOR FIXED 47p FARADS 500 VOLTS +-2% NON-MAGNETIC SOLDER PLATE		No
	46-221945P69	CAPACITOR FIXED .01UF NON-MAGNETIC SOLDER PLATE; 50V; 10% TOLERANCE		No
	2397880-2	SEMICONDUCTOR:DIODE 35 V 4 IN 1 TRANSIENT SUPPRESSOR 1206 SMT		No
	46-221735P1	50V, 10W PIN DIODE (ANTENNA SWITCH). IR-10UA, RS-1.0 OHMS, CT-4PF, T-5US. (AXIAL LEADED)		Yes
	2256719-31	INDUCTOR NEW RF 1800n HENRYS 300m AM QMIN = 28 @ 50 MHZ		No
	2256719-34	INDUCTOR NEW RF 3300n HENRYS 290m AM QMIN = 22 @ 25 MHZ		No
	2368082-14	INDUCTOR NEW RF 120n HENRYS 650m AMP 2% TOLERANCE		No
	5132836-5	RESISTOR 51.1 OHM, 1 PERCENT, 2W, METAL FILM, 100PPM PER DEG C, AXIAL- PART LOCAL TO MR AND IS REQUIRED TO MEET AM-MR NON-MAGNETIC REQUIREMENTS		No
	5132836-4	RESISTOR 301, 1 PERCENT, 2W, METAL FILM, 100PPM PER DEG C, AXIAL- PART LOCAL TO MR AND IS REQUIRED TO MEET AM-MR NON-MAGNETIC REQUIREMENTS		No
	5151497	RF DEVICE BALUN, SPECIAL 6 PIN, 63.86MHz		No
